High Stiffness 100% 3K Roll Wrapped Twill Carbon Fiber Round Tube Manufacturer

Mô tả sản phẩm

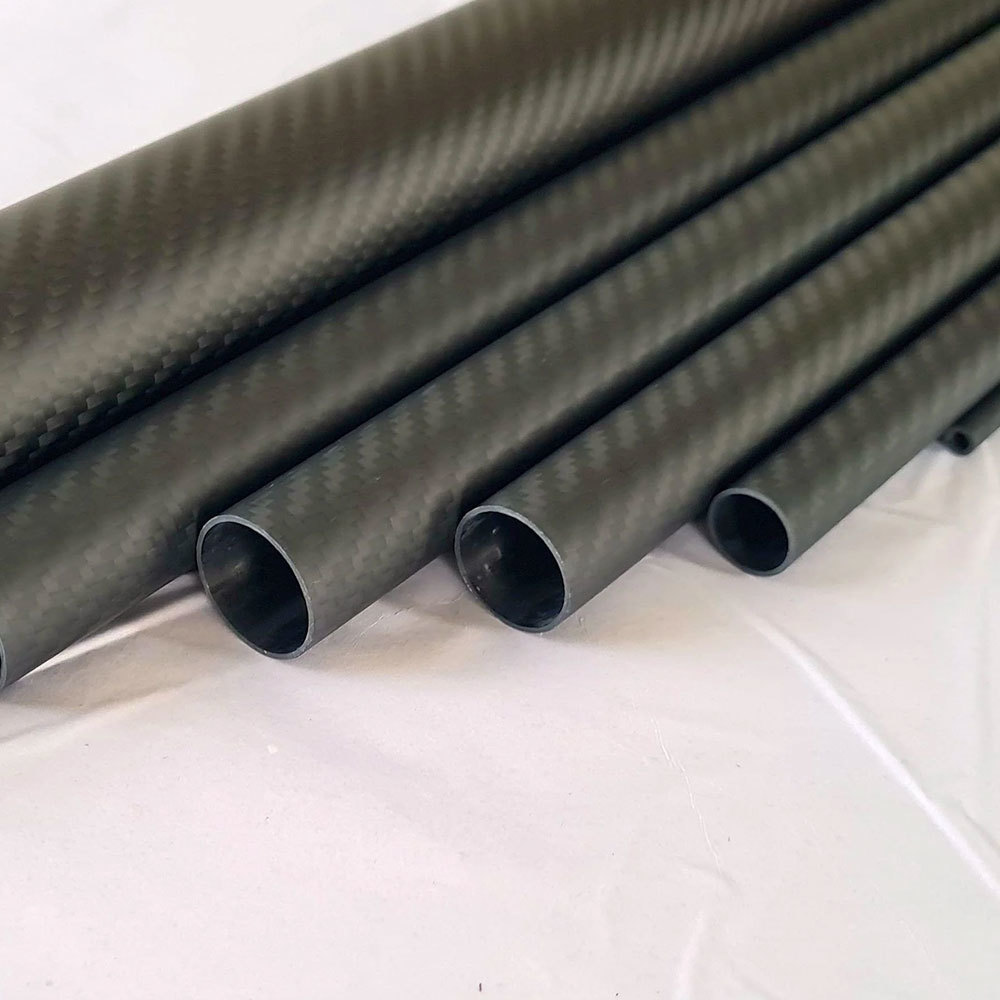

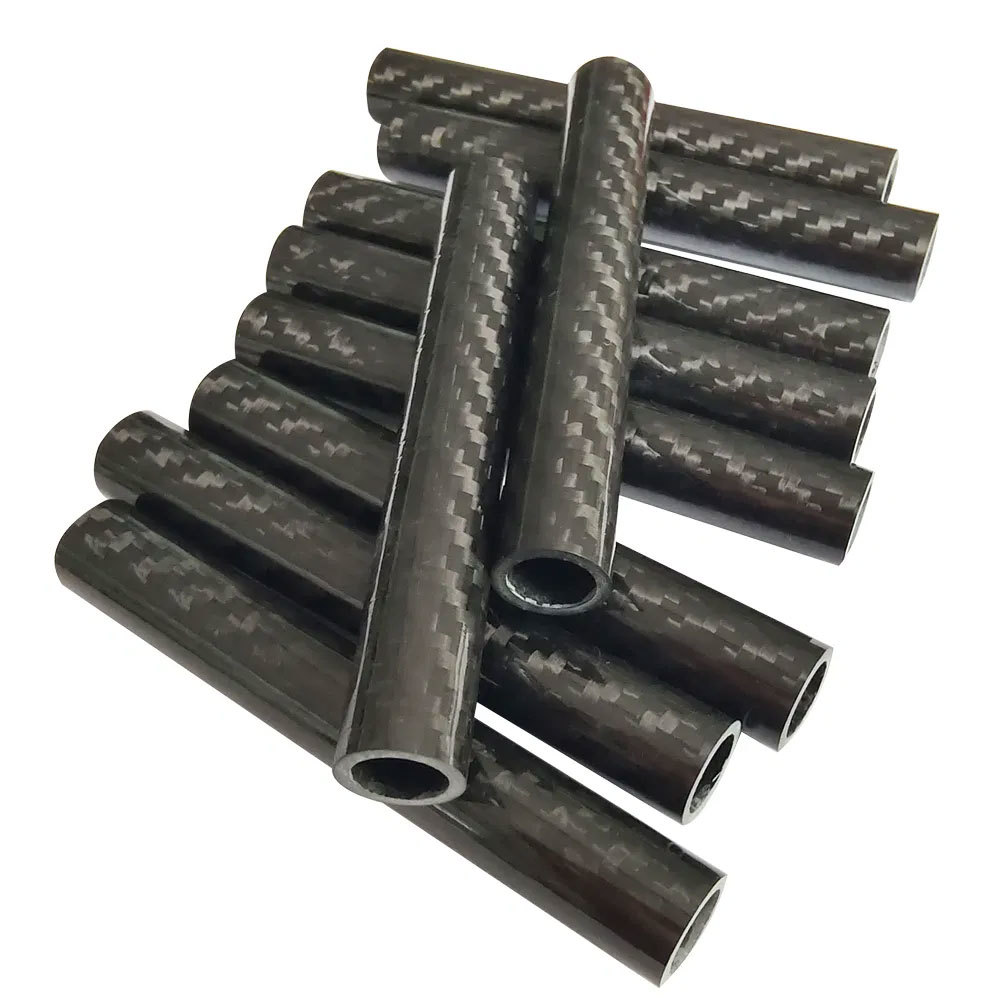

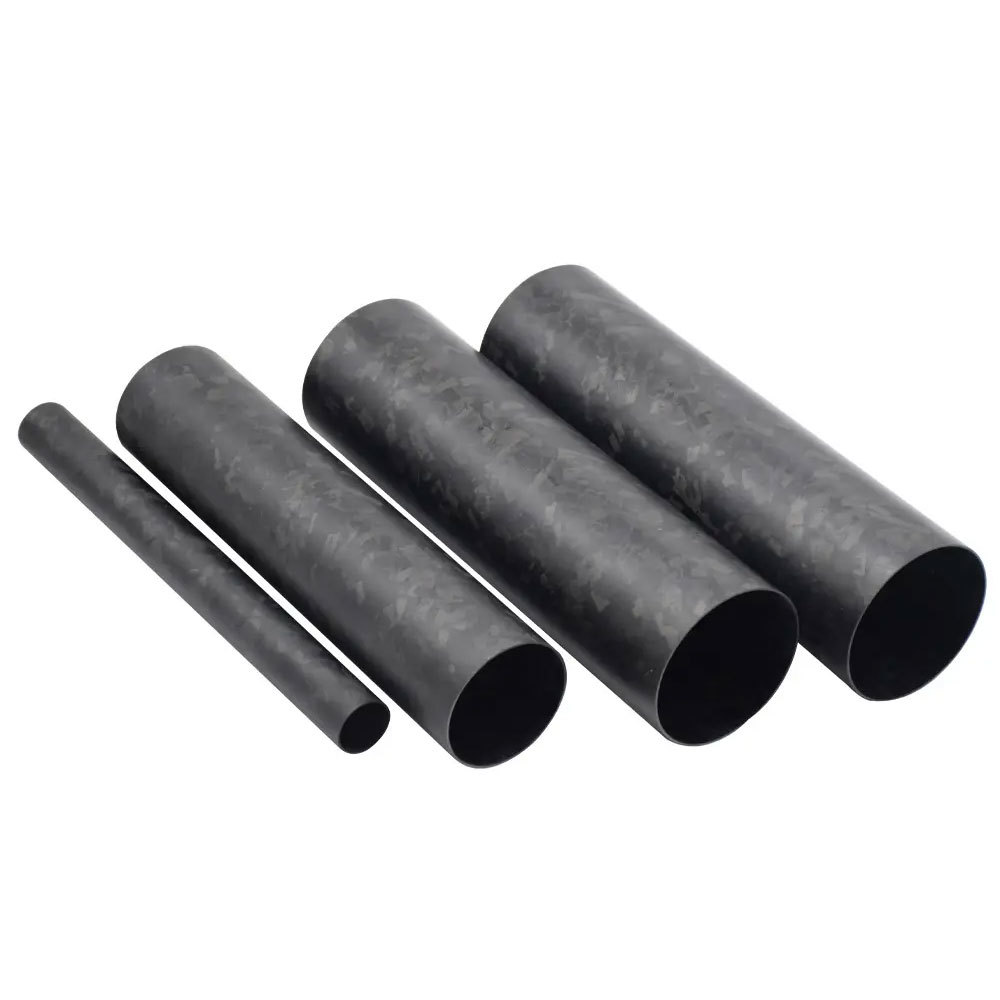

High Stiffness 100% 3K Roll Wrapped Twill Carbon Fiber Round Tube Manufacturer

Our twill round carbon fiber tube is roll wrapped from unidirectional carbon fiber with a 3k twill carbon fiber fabric outer layer. They not only offer a beautiful surface but also excellent torsional characteristics, as well as crush strength, and are ideal for high torque applications. This round tubing is ideal for building lightweight frames and structures, tubular vessels, poles, column supports, and any other application where low weight and high stiffness are essential, and appearance is also important.

Our rolled carbon tubes come in various diameters, lengths, and thicknesses. If you want to buy a large-diameter carbon fiber tube or any other specific carbon fiber tube, do not hesitate to contact us, we can custom-make a carbon fiber tube for you.

What carbon fiber tube can you buy from us?

Lijin manufacturing and wholesale multiple finishes with standard modulus carbon fiber tubes offer excellent strength and stiffness; it is 1.5X stiffer than aluminum and is the most economical grade composite tube. Finishes available be twill gloss and twill matte.

The Carbon FRP Tubes offer exceptional strength, durability, and corrosion resistance, making them ideal for various applications. Their lightweight construction and easy installation make them a featured choice among customers. The trending choice for industries looking for reliable and cost-effective solutions, our Carbon FRP Tubes are unmatched in their performance and reliability.

How to make carbon fiber tubing?

Our carbon fiber round tube is rolled unidirectional carbon fiber fabric into a mandrel, and wrapped with a 3k finish fabric exterior. Unidirectional carbon fiber is the structural backbone of all our tubes. The 3k fabric weave that gives carbon fiber tubes their traditional ”carbon fiber look” is only the outside layer and helps with durability. Usually, any wall thickness can be made by changing the number of layers or combining different prepreg thicknesses (usually 0.15mm- 0.25mm thick per layer). Our round tubes typically use layups designed for optimal performance in a wide range of conditions.

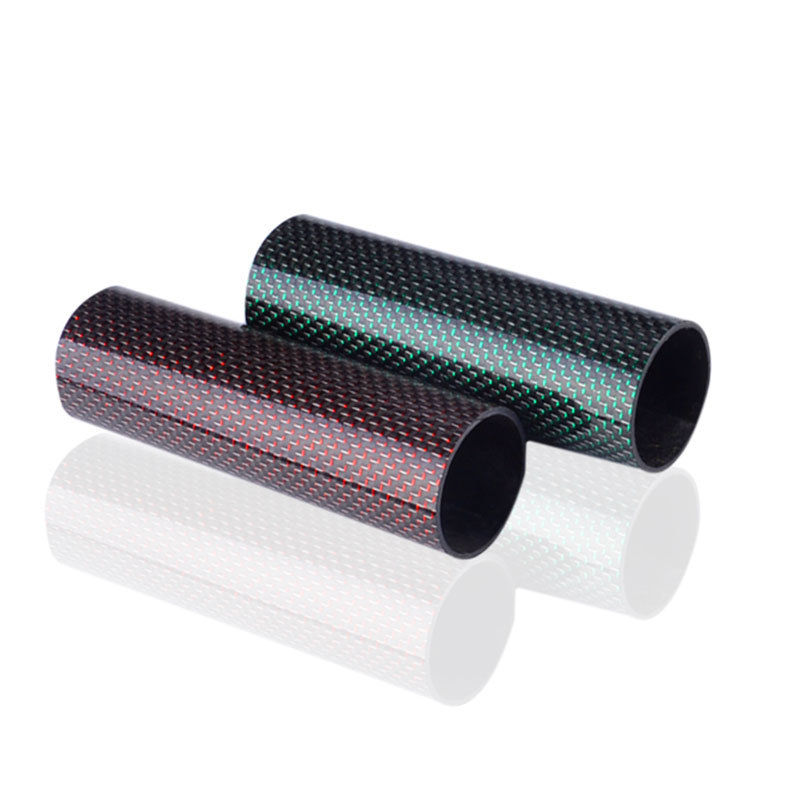

We use 100% pure carbon fiber materials to make carbon fiber tubing in a wide variety of diameters and lengths. Common diameter includes 2mm, 3mm, 4mm, 5mm, 6mm, 8mm, 10mm carbon fiber tube, ... 40mm carbon fiber tube, our round tube standard length is 1000mm, If you need a carbon fibre tube with other lengths or diameters, or need colored carbon fiber tube, do not hesitate to contact us, we can cut and custom carbon fiber tubes to your specified.

Twill Carbon Fiber Round Tube Properties

• High strength-to-weight and stiffness-to-weight ratios
• Resistance to fatigue
• Dimensional stability due to an extremely low coefficient of thermal expansion (CTE)
• 100% high-quality pure carbon fiber (aka full carbon).
• Pin-hole free high-matte cosmetic surface.
• Wide range of diameters and tube lengths available.
