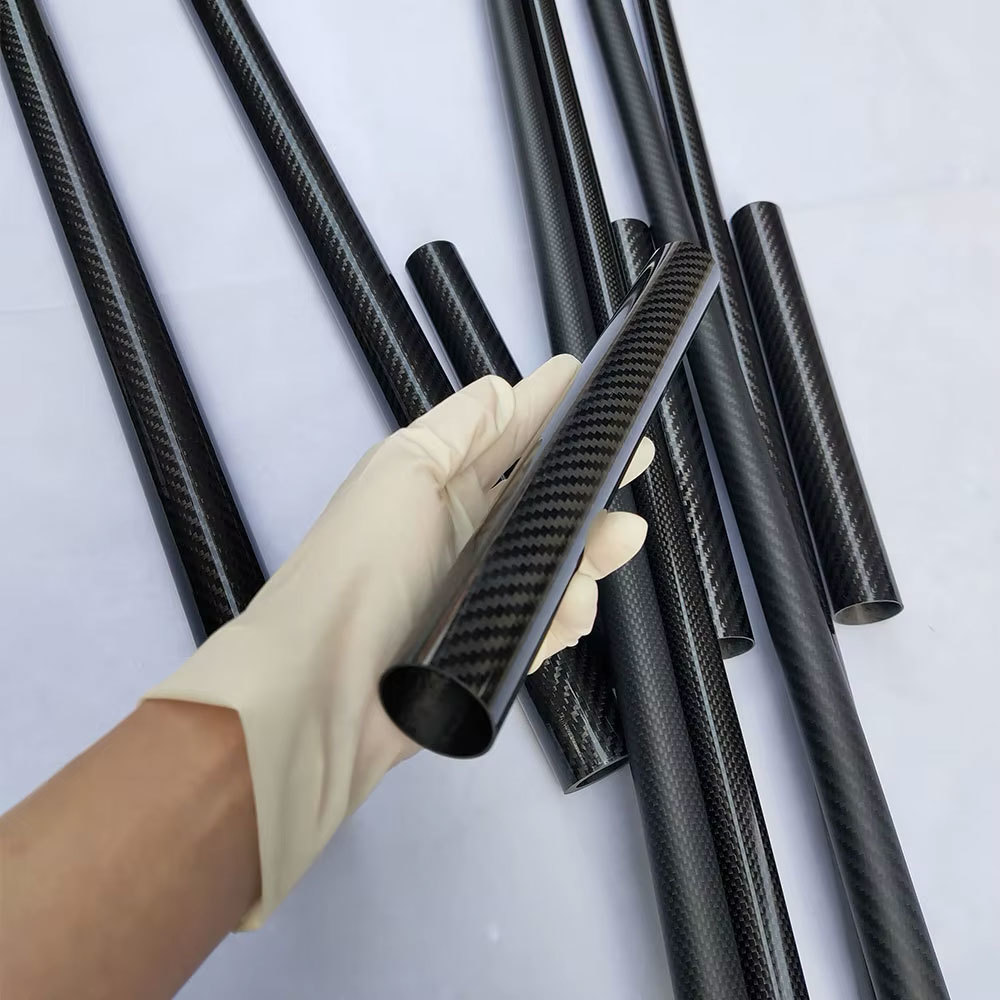

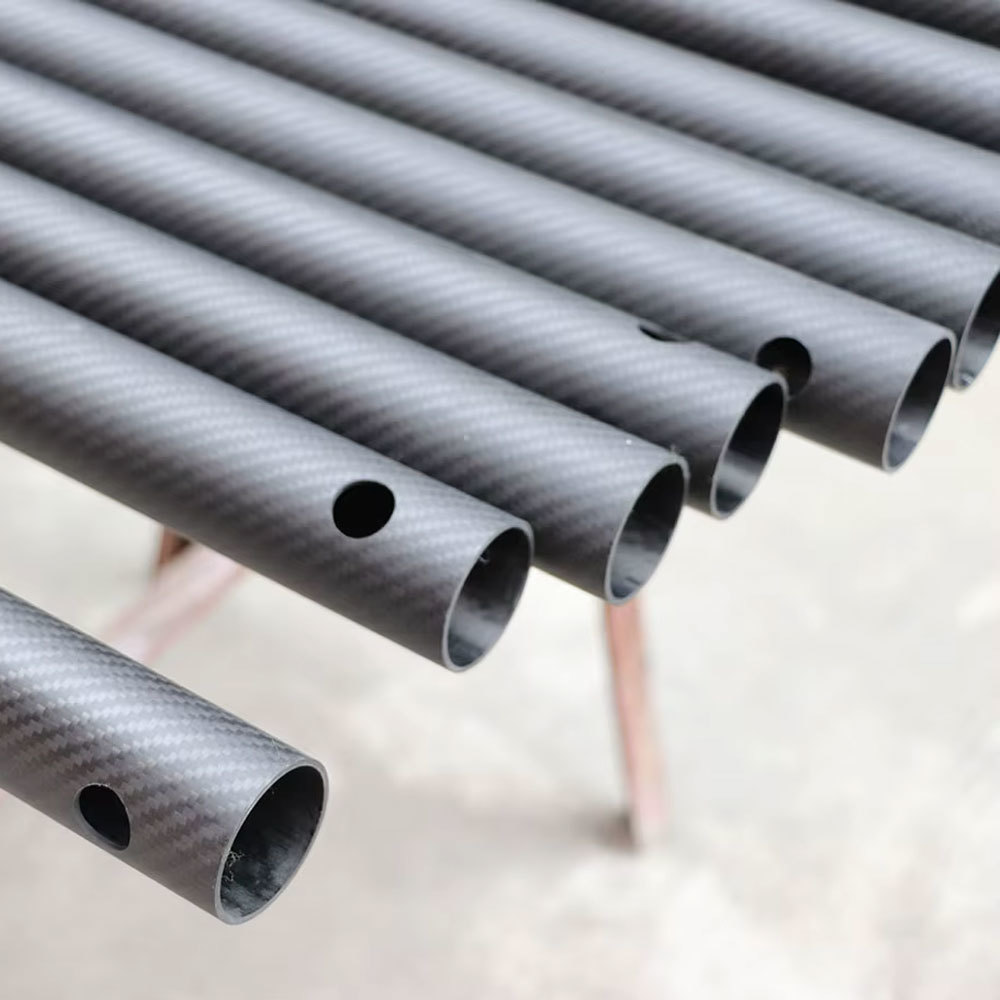

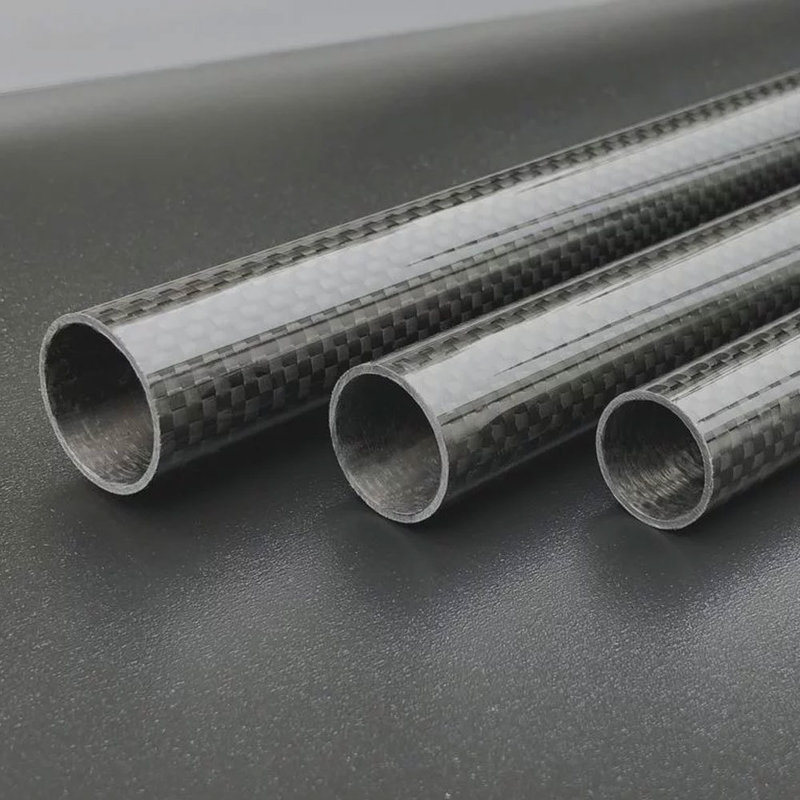

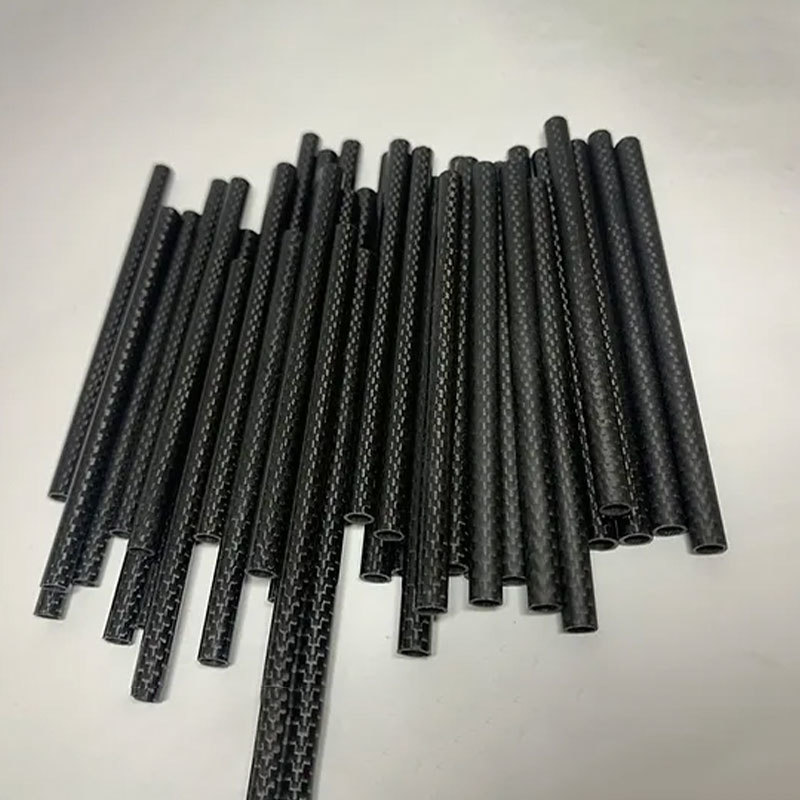

Customizable Carbon Fiber Tube, Lightweight Carbon Fiber Round Tube, High-Strength Black Carbon Tube

Mô tả sản phẩm

Customizable Carbon Fiber Tube, Lightweight Carbon Fiber Round Tube, High-Strength Black Carbon Tube

Description

• The surface is plain weave, glossy surface/ twill weave, matte finish without any glass fiber contents. High stiffness, high tensile strength, low weight, high chemical resistance, high temperature tolerance and low thermal expansion are also proves of carbon fiber tubes.
• High Strength & Lightweight -- Higher strength than aluminum alloy or steel tube, but much lighter. Also Corrosion, water, heat, and fatigue resistance.
• Material --- The carbon tube is made of pure 3K carbon fiber material. And they can be cut to any length with abrasive chop saw.
• Dimensions --- outside diameter; customizable, inner diameter; customizable, thickness; customizable, length; customizable. Diameter tolerance: ± 0.10 mm.
• Easy to Process and Install --- Thanks to its advanced material, this carbon fiber tube is easy to cut, drill, and process. Users can customize it effortlessly, and the straightforward installation process requires no complex tools

Specification

• Internal Diameter: Customizable
• External diameter: customizable
• Wall Thickness: Customizable
• Length: Customizable

Application

Widely used in racing drone arms, RC helicopter wing structural support, RC airplanes, RC boats, kite spars, 3D printer bracket clamp rack tube, landing leg tube, linear bearings tubes, extended tube, quadcopter support tube, etc.

Characteristics and Applications of Each Type Carbon Fiber Tubes

Each type of carbon fiber tube offers unique characteristics that make it suitable for specific applications. Comparing the different types of carbon fiber tubes helps in selecting the right one for your specific needs:

• Unidirectional Carbon Fiber Tubes: These tubes offer maximum strength and stiffness along the length of the tube, making them ideal for structural applications in aerospace, automotive, and sporting goods. They are particularly useful in applications where high tensile strength is required in one direction. For example, in aerospace, they are used for wing spars and fuselage components, while in sporting goods, they are used for high-performance arrow shafts and golf club shafts.
• Woven Carbon Fiber Tubes: With strength and stiffness distributed in multiple directions, woven tubes are versatile and suitable for a wide range of applications, including bicycle frames, automotive parts, and general industrial uses. Their balanced properties make them a go-to choice for applications requiring durability and impact resistance. Subtypes include twill weave, satin weave, basket weave, leno weave, and mock leno weave, each offering distinct performance characteristics. For instance, twill weave tubes are preferred for their aesthetic appeal in high-end automotive parts, while basket weave tubes are used in heavy-duty construction applications.
• Braided Carbon Fiber Tubes: Offering excellent torsional strength and flexibility, braided tubes are perfect for dynamic applications and complex shapes, such as in robotics, prosthetics, and aerospace components. Their ability to withstand dynamic loads and resist fatigue makes them suitable for high-performance applications. Braided tubes are often used in prosthetics for their lightweight and durable properties, and in robotics for their ability to handle complex movements and stresses.
