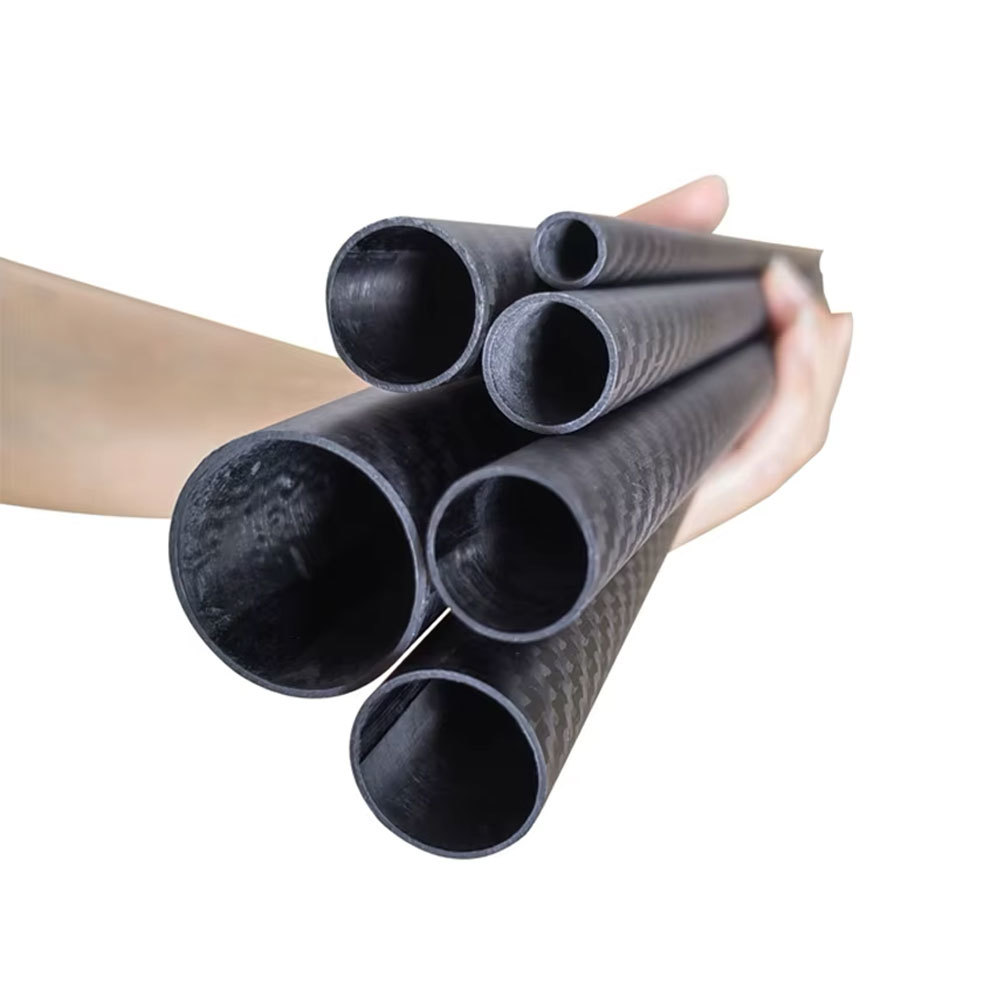

3K Twill Carbon Fiber Round Tube Roll Wrapped Tubing with Excellent Torsional Characteristics

Số lượng đặt hàng tối thiểu :	Có thể thương lượng	Giá bán :	negotiable
chi tiết đóng gói :	Đóng gói thùng carton bình thường cho lô hàng quốc tế	Thời gian giao hàng :	7 ngày làm việc sau khi nhận được đơn đặt hàng
Điều khoản thanh toán :	T/T, Western Union, L/C	Khả năng cung cấp :	Tháng 1500pcs

Nguồn gốc:	Trung Quốc	Hàng hiệu:	Tanku
Chứng nhận:	SGS, ROHS	Số mô hình:	OEM

Thông tin chi tiết
Tên sản phẩm:	Ống sợi carbon tròn	Hình dạng:	Ống sợi carbon tròn
Tỉ trọng:	1,5g/cm3	C nội dung (%):	100%
Màu sắc:	Màu sắc thường xuyên	Xử lý bề mặt:	3K Plain Weave & 3K Twill Weave, Glossy Finish & mờ hoàn thiện
Thuận lợi:	Nhà sản xuất chuyên nghiệp, kiểm soát chất lượng nghiêm ngặt	Đặc trưng:	Tỷ lệ sức mạnh cao và độ cứng trên trọng lượng

Mô tả sản phẩm

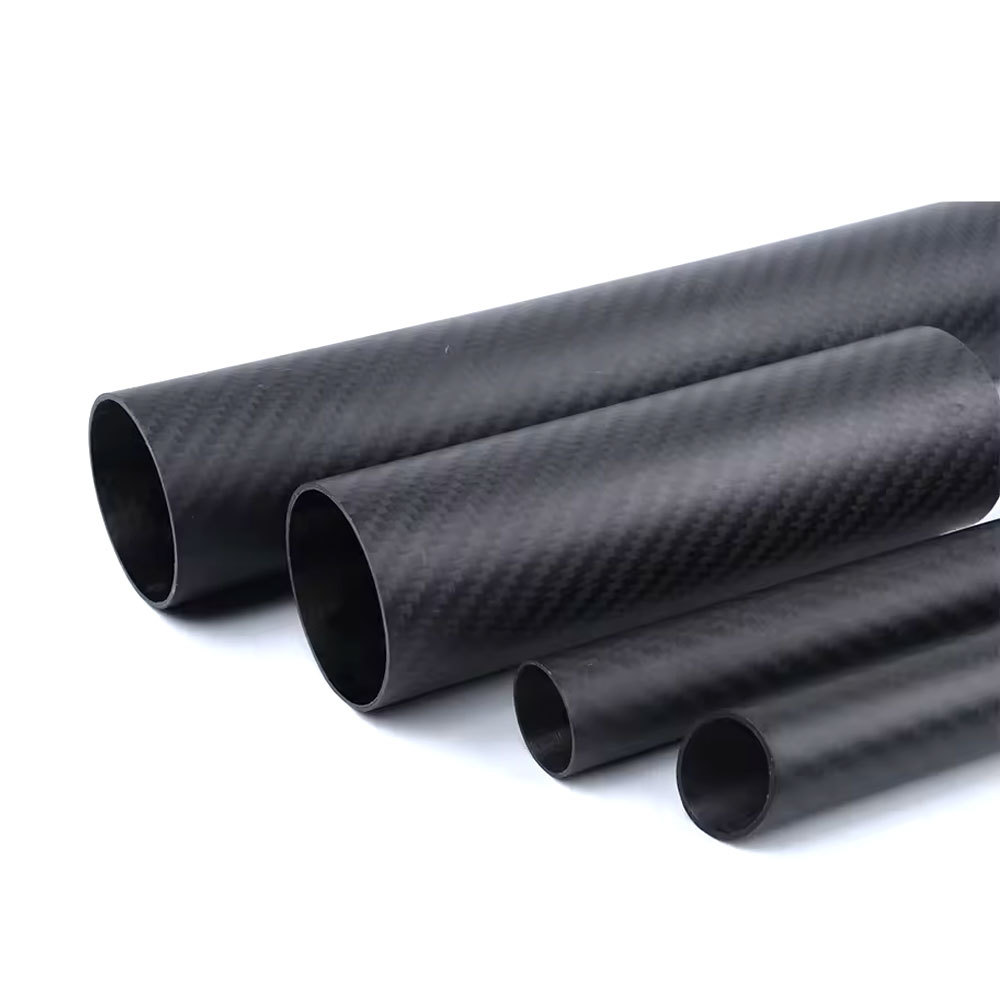

3K Twill Carbon Fiber Round Tube Roll Wrapped Tubing with Excellent Torsional Characteristics

Our twill round carbon fiber tube is roll wrapped from unidirectional carbon fiber with a 3k twill carbon fiber fabric outer layer. They not only offer a beautiful surface but also excellent torsional characteristics, as well as crush strength, and are ideal for high torque applications. This round tubing is ideal for building lightweight frames and structures, tubular vessels, poles, column supports, and any other application where low weight and high stiffness are essential, and appearance is also important.

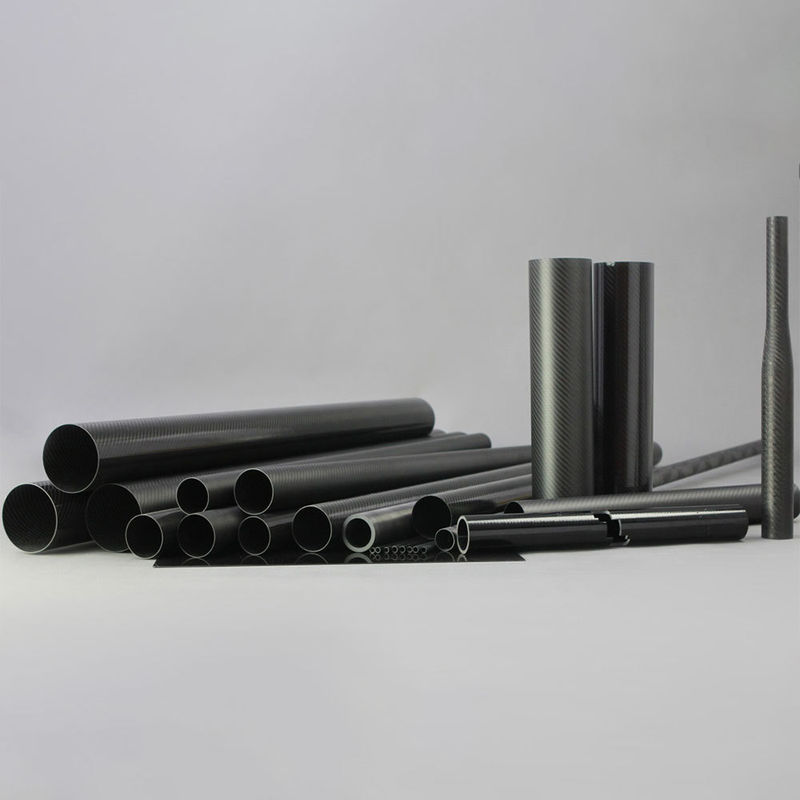

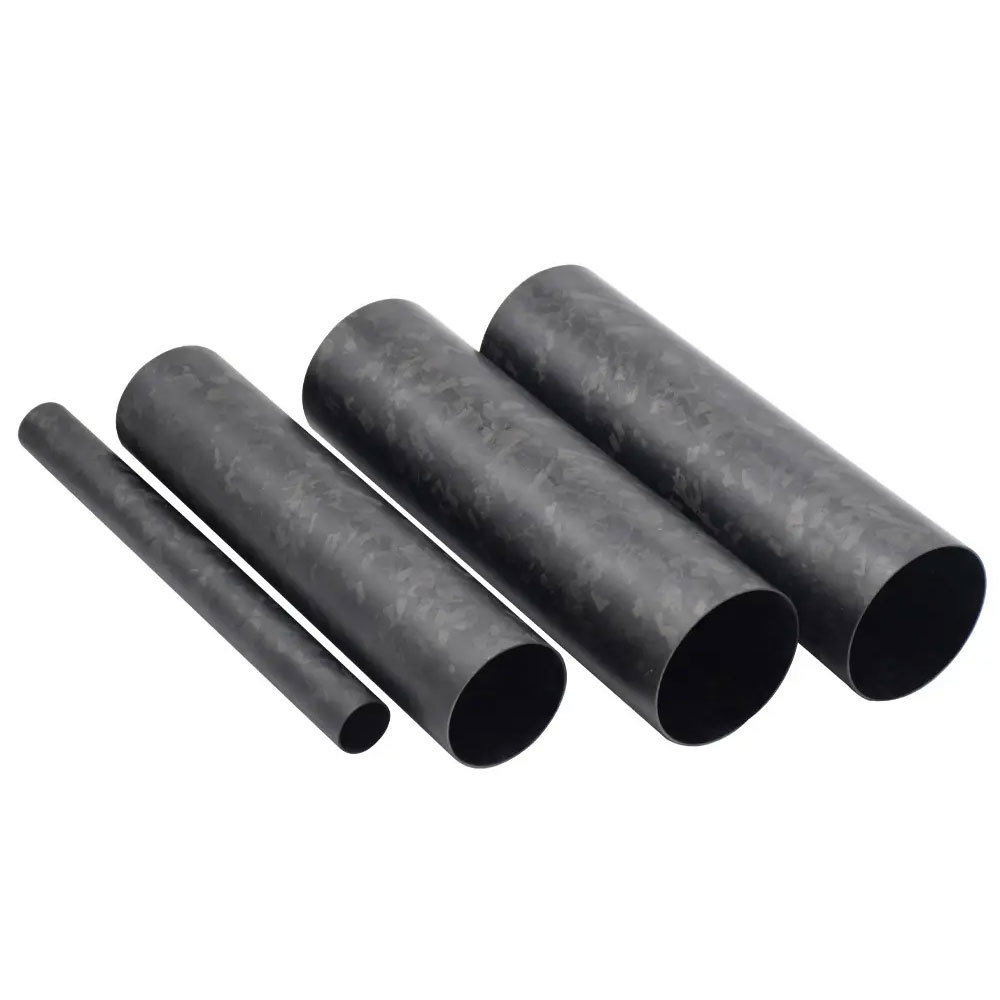

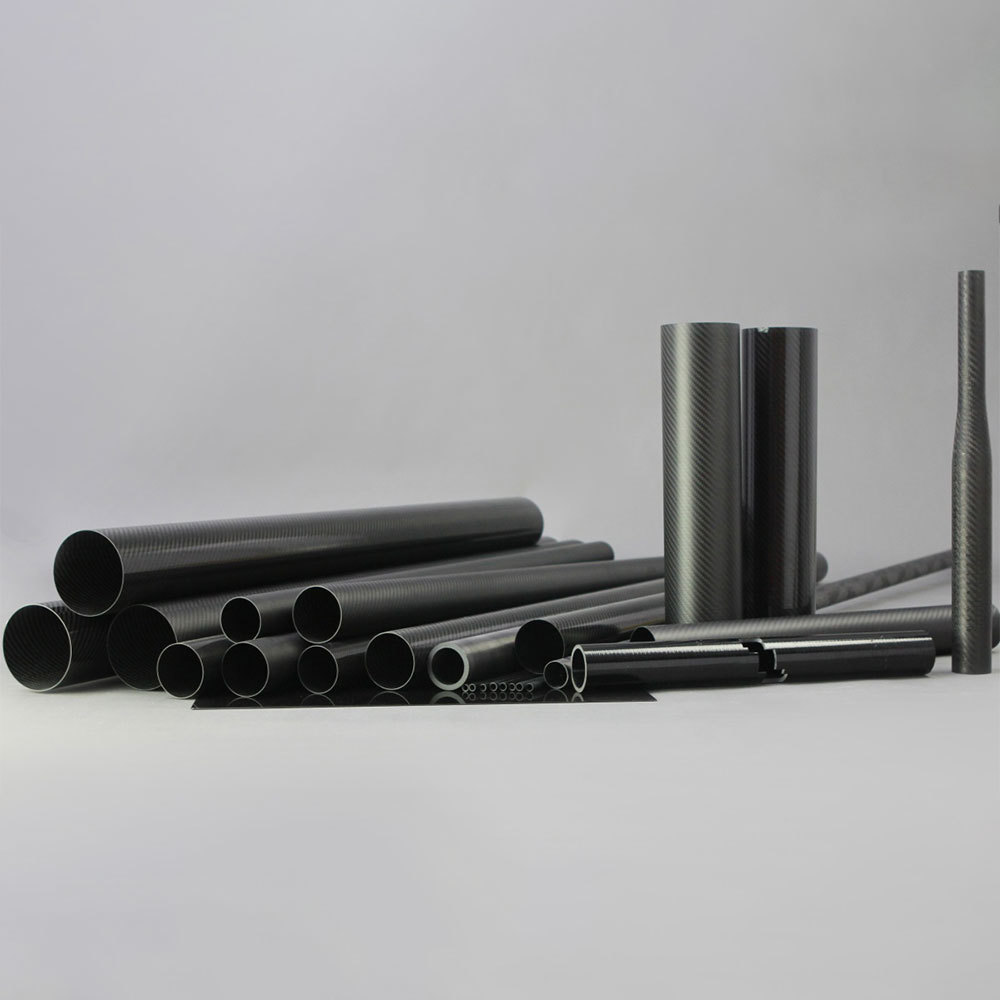

Our rolled carbon tubes come in various diameters, lengths, and thicknesses. If you want to buy a large-diameter carbon fiber tube or any other specific carbon fiber tube, do not hesitate to contact us, we can custom-make a carbon fiber tube for you.

How to make carbon fiber tubing?

Our carbon fiber round tube is rolled unidirectional carbon fiber fabric into a mandrel, and wrapped with a 3k finish fabric exterior. Unidirectional carbon fiber is the structural backbone of all our tubes. The 3k fabric weave that gives carbon fiber tubes their traditional ”carbon fiber look” is only the outside layer and helps with durability. Usually, any wall thickness can be made by changing the number of layers or combining different prepreg thicknesses (usually 0.15mm- 0.25mm thick per layer). Our round tubes typically use layups designed for optimal performance in a wide range of conditions. We use 100% pure carbon fiber materials to make carbon fiber tubing in a wide variety of diameters and lengths. Common diameter includes 2mm, 3mm, 4mm, 5mm, 6mm, 8mm, 10mm carbon fiber tube, ... 40mm carbon fiber tube, our round tube standard length is 1000mm, If you need a carbon fibre tube with other lengths or diameters, or need colored carbon fiber tube, do not hesitate to contact us, we can cut and custom carbon fiber tubes to your specified.

Key Features

Lightweight Strength – Much lighter than steel or aluminum but with superior tensile strength.
High Stiffness – Excellent rigidity, especially along the fiber direction.
Corrosion & Fatigue Resistance – Withstands harsh environments without rusting or degrading.
Custom Options – Available in different diameters, wall thicknesses, finishes (matte, glossy), and weave patterns (twill, plain, unidirectional).
Aesthetic Appearance – Classic carbon fiber look with a smooth, high-tech surface.

Applications

Aerospace and UAV structures
Automotive parts (drive shafts, roll cages, spoilers)
Robotics and automation equipment
Tripods, camera rigs, and gimbals
Sports gear (bicycles, fishing rods, golf shafts)
Marine and outdoor equipment

Product Name	Carbon Fiber Tube
Material	100% Carbon Fiber
Color	Black or custom
Surface	Matt/Glossy
Size	Custom thickness and length
Fiber Specifications	1K/3K/12K
Weaving Style	Plain/Twill
Fiber Type	1. Carbon fiber+carbon fiber 2. Carbon fiber+ glass fiber 3. Carbon fiber+aramid fiber
Application	1. Aerospace, RC model parts Helicopters Model 2. Manufacture fixtures and tooling 3. Industrial automation and robotics 4. Sports equipment 5. Musical instruments 6. Scientific Apparatus 7. Medical device 8. Others
Our Product	Carbon fiber tube, carbon fiber plate, carbon fiber profiles.

We are a professional chinese manufacturer of FRP profiles, and also carbon fiber products for more than 10 years! We produce all types of carbon fiber tubes, panels, bars, rods, CNC sheet, etc. Excellent properties include: corrosion resistance /lightness /good toughness.

If you want to order our products, please include ID, OD, length, dimensional tolerances, quantity, structural requirements, surface finish, surface pattern, material (if you know), temperature requirements, processing technology, etc. With these items as the starting point, we can usually very quickly put together a quotation to help you get your project from idea to reality. pls click!

Service

Customization – Prepreg plies can readily be added or subtracted allowing the tube to be customized with different wall thicknesses
Sample Acceptable – Because each tube is made one at a time, small production runs are available.
CNC Machining — cutting according to your CAD drawing
Print Logo – according to the AI file
One- Stop Procurement – a whole industry chain of carbon fiber composite products
